HD-TVI / 960H DVR

$1,159.00$5,519.00

  • Auto-detect
  • HD-TVI
  • 960H Analog
  • D1 Camera recording
Clear

HD-1080p & Communication Over A Single Coax

No Distance Limitations / No CAT5 / No Router / No Switch

Rugged Cams brings you the Ultimate Hybrid DVR that delivers HD-1080p Megapixel Video – PLUS – it recognizes any Legacy Analog cameras you may already have.

No Hassle – Instant HD Video with a Single Connection – Up To 1500 feet!

The New Rugged Vault Hybrid DVR from Rugged Cams, is stuffed with every feature that you and your business will need for bringing beautiful, HD-1080p Video to your Desktop, Laptop, Phone or Tablet. Manage it from anywhere – and on any device!

Many of our Megapixel Cameras Have ZOOM LENS Control from the DVR or your Phone/Tablet

Since the Rugged Vault Hybrid DVR can automatically sense between HD-TVI cameras and any Legacy Analog cameras you may already have, this DVR is ready to grow with you as you slowly replace old cameras with new Megapixel cameras. Mix & Match any way you like!

The Rugged Vault can record REAL TIME for every channel – no matter the resolution!

The Rugged Vault Hybrid DVR has a very easy to navigate Menu structure that is easy to grasp right away. You will find that it is really simple to navigate through the many options for how and when to record – real time or motion-based – and can even speed up the process of searching for events in your recorded footage, with Smart Search and Event Search features that can find the evidence you need in a matter of minutes.

This great Hybrid DVR series has so many features, we literally cannot list them all here. For example, there is a “Signal Booster” built into every channel that corrects weak or fuzzy signals. It also can give you Alarm Notifications on your Phone or Tablet (via our handy App), a Gigabit Ethernet Port, Two-Way Audio Communication, and many types of recording to choose from (External Sensor, Motion, Audio Detection, Text/POS, etc.).

Talk to one of our Sales Engineers today about choosing the model and Chassis that best suits your needs. Capacities include: 2 Hard Drives – 3 Hard Drives – 6 Hard Drives – & External RAID Storage

PLUS – Don’t Forget – Rugged Cams gives you FREE Tech Support for LIFE!

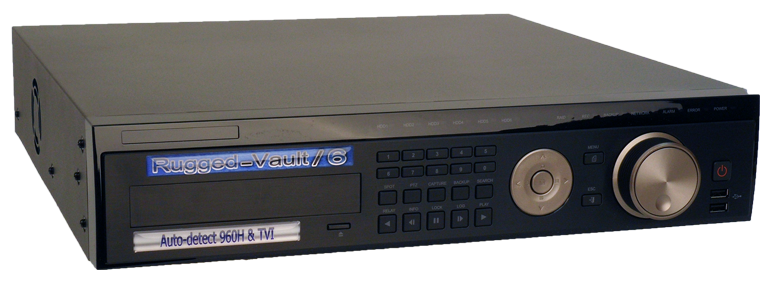

Rugged Vault Universal DVR

Rugged Vault/2      Rugged Vault/3      Rugged Vault/6

 Operating System Embedded Linux
Built in flash memory
 Language Chinese, Chinese(S), Dutch, English, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Latvian, Persian, Polish, Portuguese, Russian, Spanish, Sweden, Turkish
 Time Accuracy  5ppm (12.5 Sec/Month)
 Time Sync.  NTP, GMT, DST
 User  15 Users (Admin., User1 ~ User14)
 Access  Front button, Mouse, Remote Control, Network, Key controller
 Hexaplex  Live monitoring, Recording, Playback, Backup, Network, Setup
Rugged Vault/2      Rugged Vault/3      Rugged Vault/6
System NTSC / PAL – Config switch
Input 16 / 8 / 4 BNC
Output 1 HDMI, 1 VGA, 1 BNC
loop NA
Spot 1 RCA (4 CH: N/A)

Rugged Vault/2      Rugged Vault/3      Rugged Vault/6

Input 16, 8, 4 RCA
Output 1 HDMI, 1 RCA

Rugged Vault/2      Rugged Vault/3      Rugged Vault/6

Compression H.264
Speed 0 x 1080p Real time Recording (480fps / 240fps/ 120fps)
Resolution 1080p, 720p, 960H, D1, CIF
Mode Schedule
Event Sensor, Motion, Audio, text
Quality 5 Levels
Bit Rate 512Kbps ~ 5Mbps/Ch, Adjustable (4CH : 512Kbps ~ 6Mbps/Ch, Adjustable)

Rugged Vault/2      Rugged Vault/3      Rugged Vault/6

Compression G.711u
Sampling Rate 8KHz
Bit Rate 64Kbps

Rugged Vault/2      Rugged Vault/3      Rugged Vault/6

Search Go to first rec. time, Go to last rec. time, Go to last search time, Calendar, Log viewer, Smart search, Multi-time & day search, Event search
Mode Event only playback, Backward, Pause, Frame by frame, Panorama Speed up (x1 ~ x32, x300)

Rugged Vault/2      Rugged Vault/3      Rugged Vault/6

Interface Ethernet 10/100/1G
Compression H.264 or JPEG
Speed Max. 720p 10 fps/ch
Resolution Max. 1280 x 720p
Mode Bandwidth control

Rugged Vault/6

Rugged Vault/3

Rugged Vault/2

Interface USB2.0, DVD, Network USB2.0,  Network USB2.0, Network
Format Video clip (Backup viewer), JPEG Still Image, Log List,Setup Data Video clip (Backup viewer), JPEG Still Image, Log List,Setup Data Video clip (Backup viewer), JPEG Still Image, Log List,Setup Data

Rugged Vault/2      Rugged Vault/3      Rugged Vault/6

Pre/Post-Alarm 5sec / 5sec~5min
Motion Grid 32 x 24 (NTSC/PAL)
Alarm Action E-mail, Channel Popup, Buzzer, Relay, PTZ Preset, Spot, Remote CMS, Front LED
Input / Output 4/1 – NC/NO

Rugged Vault/2      Rugged Vault/3      Rugged Vault/6

HDMI ★ Full HD, XGA
VGA Full HD, XGA
TV SDTV(720×480/576)
Mode 16/9/4/1/SEQ – LIVE, 16/9/4/1 – P.B
Camera Adjust SD Cameras Only
TV Adjust N/A
Camera Title Name English : 20 characters – Chinese, Japanese, Korean : 10 characters

Rugged Vault/6      Rugged Vault/3      Rugged Vault/2

PTZ / Keyboard 2 RS 485 – Terminal Block
ATM / POS RS 232C – Terminal Block, Ethernet POS

Rugged Vault/6

Rugged Vault/3

Rugged Vault/2

Primary 6 HDD 3 HDD 2 HDD or 1 HDD + 1 eSATA
External 2 eSATA 1 eSATA 2 HDD or 1 HDD + 1 eSATA
CD/DVD Yes Yes N/A

Rugged Vault/6

Rugged Vault/3

Rugged Vault/2

Jog-shuttle Yes N/A N/A
H/W RAID ★ RAID 1/5 Options ★ RAID 1/5 Options N/A

Rugged Vault/6      Rugged Vault/3      Rugged Vault/2

Universal Yes
EOL Yes
Coaxitron N/A
Privacy Zone N/A
Covert Channel Yes
Digital Zoom x1 ~ x16
Watermarking Yes
Two-way Audio Yes
Detection / Search Motion, Sensor, Audio, Text
Fan Fail Yes
E-mail 5 User with still image
Capture Full HD, XGA
iSCS Recording N/A
DDNS, DHCP, UPNP Yes
VMS, RMS Windows
Smart Phone (3G/4G) Android, Apple
Mac Viewer ★ Apple Mac OS
Rugged Vault/6 Rugged Vault/3 Rugged Vault/2
Power Supply 90 – 250V, 50/60Hz 12V/5A – Level 5 12V/5A – Level 5
Consumption 80Watts 60Watts 40Watts
Operating Temp. 40° ~ 104° F 40° ~ 104° F 40° ~ 104° F
Humidity 10 ~ 80{8c70a1e8a325bd6daed7663cc0c5882e747cad05b9002915a90e119d4d50fbd4} 10 ~ 80{8c70a1e8a325bd6daed7663cc0c5882e747cad05b9002915a90e119d4d50fbd4} 10 ~ 80{8c70a1e8a325bd6daed7663cc0c5882e747cad05b9002915a90e119d4d50fbd4}
Weight w/o HDD 17.7 lbs 8.9 lbs 6.7 lbs
Dimension 17.32″(W) x 16.93″(D) x 3.46″(H) 16.93″(W) x 10.63″(D) x 3.38″(H) 13.40″(W) x 11.80″(D) x 2.30″(H)
Certification CE, FCC, RoHS Compliance CE, FCC, RoHS Compliance CE, FCC, RoHS Compliance

Rugged Vault Downloads:

  • Manual
  • Quick Reference Guide
  • Mac Viewer Software
  • CMS/VMS Software
  • CMS/VMS Manuals
  • Firmware Upgrades

Download Here:

DVR Recording Times

The table below shows recording time of the Rugged Vault DVR’s using a 4tb Hard Drive Storage and various recording times per camera per day.

Based on 1080p Video Resolution and 30 FPS Recording speed.
Calculations are at Largest Resolution & all settings at Maximum.
Lower Resolutions and slower frame rates will result in longer recording times, but may effect video quality.

4tb Hard Storage Rugged Vault
4 Channel
Amount of video storage
Rugged Vault
8 Channel
Amount of video storage
Rugged Vault
16 Channel
Amount of video storage
File Over write will start with the first file recorded.
To Calculate additional storage, multiply drive size by above recording times
4 Hours of Motion Based Recording per day = 94 Days,9 hours 52 Days,3 hours 25 Days, 20 hours
8 Hours of Motion Based Recording per day = 47 Days, 4 hours 26 Days, 1 hours 12 Days, 22 hours
12 Hours of Motion Based Recording per day = 31 Days,11 hours 17 Days, 4 hours 8 Days, 14 hours
Continuous Recording = 15 Days, 17 Hours 8 Days, 16 Hours 4 Days, 7 Hours

Rugged Vault Dimensions & Back Views


Rugged Vault/2 Back View


Rugged Vault/2 Dimensions


Rugged Vault/3 Back View


Rugged Vault/3 Dimensions


Rugged Vault/6 Back View


Rugged Vault/6 Dimensions
