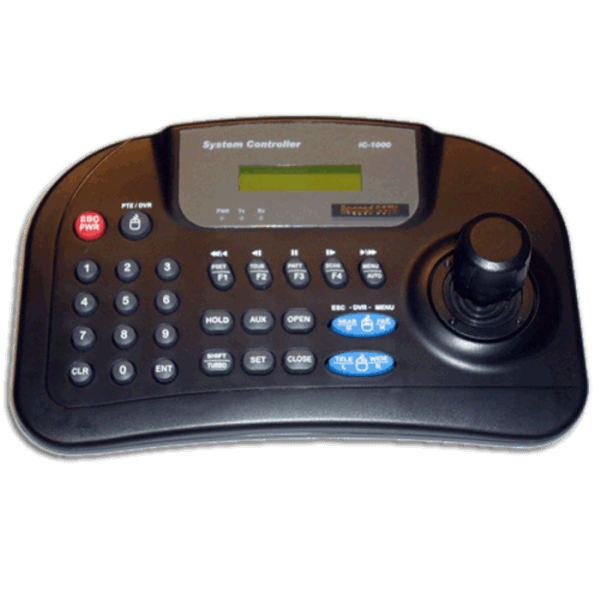

PTZ & DVR Controller


PTZ & DVR Controller

  • LCD Display
  • Control up to 255 Cameras
  • 3 Axis Joystick
  • multi-protocol, and baud Rates

The PTZ / DVR Controller from Rugged Cams can not only control any PTZ camera, but can also control any of our DVR’s (and most others that support USB mouse operation).

This PTZ / DVR Controller can controll as many as 255 PTZ Cameras at distances up to 4700 ft away

Can be powered by 12v DC or by use of 9v Battery

Keyboard Communication Interface: RS-485 (Tx 3 port, Trx 1 portz)
Pan – tilt-zoom operating distance
:4700 ft No 24 AWG wire
Multiple Protocol Sopport (Baud rate selectable)
Terminal Block (8p connector)
Keyboard Keypad Rubber Button
Numeric keypad and camera function keys
Joy Stick 3-Axis, variable speed with zoom
Input Volatge 12v DC or 9v Battery (battery mode)
Power Consumption Max. 140 mA
LCD Display 2 Lines Character LCD
Operation Temperature 32° F – 113° F
Humidity 10{8c70a1e8a325bd6daed7663cc0c5882e747cad05b9002915a90e119d4d50fbd4} – 70{8c70a1e8a325bd6daed7663cc0c5882e747cad05b9002915a90e119d4d50fbd4} RH
Certification CE, FCC, RoHS

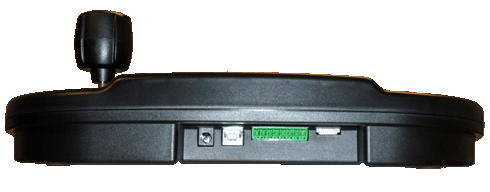

Back View of PTZ / DVR Controller
