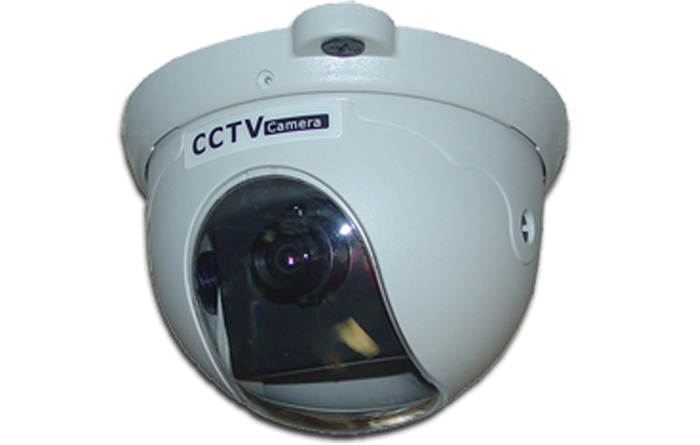

550icm Super Hi Resolution Indoor Dome NEW Minute Mount Feature Takes just 1 minute to mount + 2 screws and you’re done!!
Easy Mount/Easy connection No camera is simpler! White color blends in with any ceiling! 2 Year Warranty and Unlimited Technical Support for the life of your system
- Fixed Lens 3.6mm
- 550 Lines of Resolution
- signal/noise ratio greater than 52dB
- Dimensions (D X H) — 4.21″ x 2.52″
- 350º pan rotation by hand
- 75º tilt adjustment with a screwdriver
Installation / Technical Information
Power Consumption
.055mA
Maximum Distance for 12v DC over standard 18/2 power wire for the 550icm Dome Camera is 1500′ feet
Camera Video/Power Connection
550 ICM
| Signal system | NTSC / PAL |
| Image Sensor | Opsie Sensor |
| Sync system | Internal |
| Horizontal resolution | 550 TV Lines |
| Lens | f=3.6mm, F2.0 |
| Auto White Balance | Auto (2500°K to 9500°K) |
| Electronic Shutter | Auto |
| Aperture | Auto |
| AGC | Auto |
| BLC | Auto (1/3 center) |
| Minimum illumination | 0.01 lux |
| S/N Ratio | >52dB |
| Power requirement | DC12V±10 |
| Power Consumption | 0.055 mA |
| Operating temperature | -1 4 ºF ~ 122 ºF |
| Operating humidity | 90 RH |
| Storage temperature | -4 ºF ~ 140 ºF |
| Easy adjustment | External 350º pan direction rotation 75º tilt direction adjustment |
| Dimensions (D X H) | 4.21 inches x 2.52 inches |
