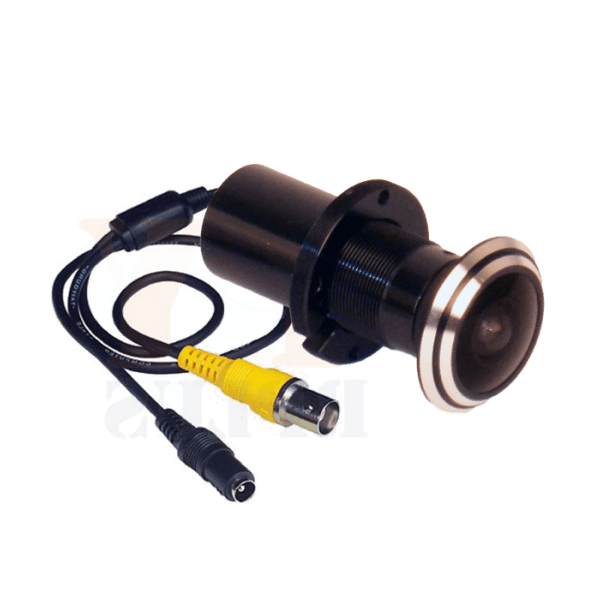

Face Plate Camera


Weatherproof Indoor/Outdoor Camera

  • 1.78mm Varifocal Fish-eye Lens
  • 700 TV Lines
  • Angle of View : 170°

Rugged Cams Face Plate / Door View Camera is an indoor/outdoor weather proof IP67 rated camera that can be used in carwash auto cashiers, Bank ATM machines, drive up teller, as well as through objects like doors, wall panels etc.


  • 1/3” SONY High-Resolution Super HAD CCD
  • 700TV Lines Horizontal Resolution
  • Excellent Low Light Sensitivity of 0.3Lux/F1.2
  • Auto White Balance
  • Auto Gain Control
  • Fish-eye Lens 1.78mm (Angle of View : 170°)
  • Reverse Polarity Power Input Safety Circuit

IMAGE: Download specs icon IMAGE: Camera Dimensions drawing Click for larger image

Installation / Technical Information
Power Consumption
Maximum Distance for 12v DC over standard 18/2 power wire for the Face Plate / Door View Camera is 900′ feet

Camera Video/Power Connection

IMAGE: 2.1mm Power Connector & BNC Video Connector

Click for larger image

Face Plate / Door View Camera Specifications

Image sensor 1/3” SONY High-Resolution Super HAD CCD
Effective Pixels NTSC : 768(H) x 494(V), PAL : 752(H) x 582(V)
H. Resolution 700 TV Lines
Synchronizing system Internal
Scanning system 2:1 Interlaced
Video output CVBS : 1.0Vp-p/75Ω
S/N ratio 48dB or more (AGC Off)
Min. Illumination 0.3Lux/F1.2
Shutter Speed NTSC:1/60~1/100,000 sec. PAL:1/50~1/100,000 sec.
Gamma Correction 0.45
White Balance Auto
Gain Control Auto
Backlight Compensation BLC / FLC (S/W)
Power source 12VDC
Operating current 100mA
Lens Fish-eye Lens 1.78mm
Iris Control MANUAL
Operating temp./Humidity -14°F ~ 122°F
IP Rating IP67 Indoor/Outdoor
Measurement 2.350″(L)
Weight 1 lbs.

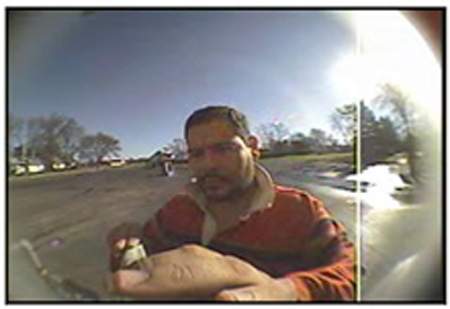

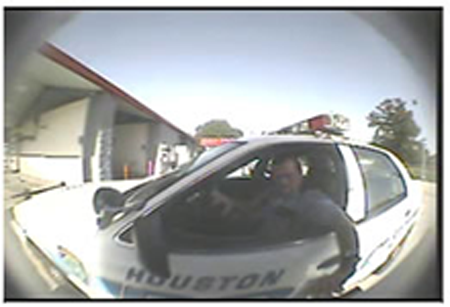

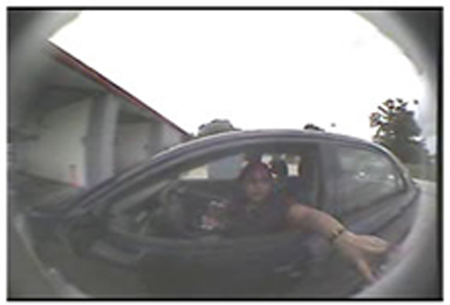

Face Plate Camera Images
