| Input Voltage | AC110V/230V (Switchable) |
| Input Voltage Frequency | 50/60Hz |
| Input Protection | Power On/off Frontal Switching + Fuse |
| Output Power | 12VDC(+/-5%VDC) @ 25Amp |
| Output Terminal | 16CH * Screw Terminal |
| Output Fuse | 16CH Individual PTC Fuse |
| Size | 19″ Rack Mount (1U) 17″ x 9″ x 2.25″ |
| Protection: | |
| Thermal Cutoffs Protection (TCO): each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working. | |
| Short circuit protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close. | |
| High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device. | |
| Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal. | |
| Other Features: | |
| With Fan in the Case to Cool Internal Temperature | |
| With LED Voltage and Current Output Meter (Optional) | |
| Adjustable Output Voltage up to 14VDC | |
| Efficiency / Electrical Performance > 85% | |
| Front Panel LED Display for Problem Identification / Terminal Status | |
| Application ： | |
| CCTV Camera, IP Camera, PTZ, IR Illuminator, DVR,LED Driver, Access Control , etc. | |

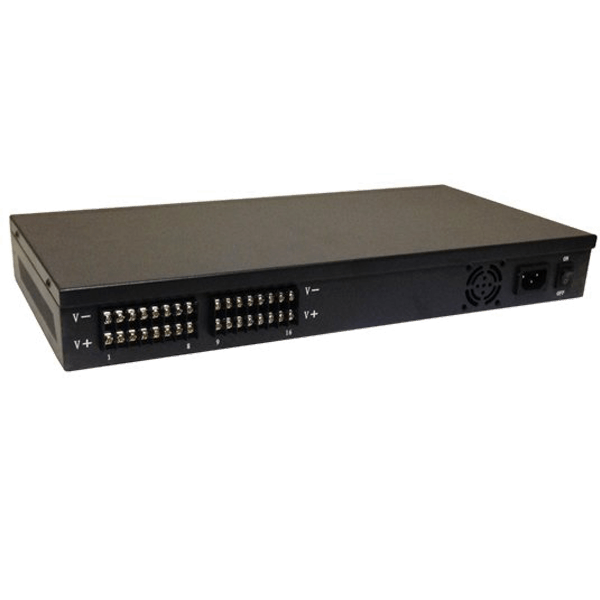

16 Channel 12V DC Rack Mount Power Supply
$223.00
Units are Built to Order
